Introduction

Microbial fuel cells (MFCs) harness the metabolic activities of microorganisms to convert organic substances into electricity, offering an environmentally friendly approach to energy generation. This technology has advanced significantly to address the increasing global demand for sustainable and clean energy solutions.¹ MFCs answer various environmental and energy-related issues, such as treating wastewater, contaminating pollutants, and utilizing biomass and organic waste for power production.² In MFCs, electroactive bacteria at the bioanode decompose organic materials, releasing electrons and protons. The electrons travel through an external circuit, generating an electrical current, while the protons move through a proton exchange membrane to reach the cathode. At the cathode, electrons combine with protons and an electron acceptor, typically oxygen, to complete the circuit and produce water.³ The effectiveness of MFCs heavily depends on the microbial communities involved. Bacteria such as Geobacter, Shewanella, and Lysinibacillus species play vital roles due to their distinct metabolic pathways that facilitate direct electron transfer to the anode or through mediators. The proper selection and optimization of these microbial catalysts are crucial for enhancing MFC efficiency. MFCs present numerous benefits compared to conventional energy generation methods: MFCs make use of organic waste and renewable biomass, contributing to a sustainable energy cycle. MFCs offer a dual advantage of reducing environmental pollution and energy expenses by treating wastewater and generating electricity simultaneously.⁴ MFCs function at ambient temperatures and pressures, requiring minimal external energy input. Despite the potential advantages of MFCs, several challenges must be overcome to realize their commercial and industrial potential. These challenges include enhancing power density, scaling up the technology, improving the stability and efficiency of microbial catalysts, and reducing material and construction costs.^5,6 Ongoing research efforts are focused on exploring new microbial strains, optimizing reactor designs, and integrating MFCs with other renewable energy systems. One promising area of research involves the use of Lysinibacillus species as biocatalysts, which may offer unique benefits in terms of electron transfer efficiency and operational stability.^{7, 8} Bibliometric analysis is essential in research and academic publishing, and tools like Dimensions AI and VOSviewer play a significant role in enhancing this process. These tools help understand research trends, evaluate research impact, and identify collaboration opportunities.⁹ Dimensions AI provides comprehensive data on research outputs, citations, grants, patents, and clinical trials, enabling the identification of emerging trends, popular research topics, and prolific authors or institutions. VOSviewer, on the other hand, allows for visualizing the structure and dynamics of scientific research through network data, such as co-authorship, co-occurrence, and citation networks, aiding in understanding research topic development and diffusion.^{10, 11} Dimensions AI offers citation metrics and altmetrics to assess the impact of specific papers, authors, or journals, which is crucial for funding agencies, researchers, and institutions to determine the significance and reach of their research. Similarly, VOSviewer helps in visualizing citation patterns and identifying influential papers and authors within a field, providing insights into the impact and influence of research works. Dimensions AI highlights collaboration patterns between researchers, institutions, and countries, potentially leading to new collaborations and partnerships. VOSviewer maps co-authorship networks to reveal interconnected researchers and potential collaborators active in specific research areas. Dimensions AI and VOSviewer offer valuable insights for strategic planning and decision-making in research institutions.^12-14 By identifying strengths and weaknesses, these tools enable better resource allocation and policy-making. Additionally, they aid in literature reviews by facilitating comprehensive searches and organizing bibliometric data efficiently. Moreover, they help in tracking research funding and outputs by visualizing the relationship between funding sources and research productivity. Overall, utilizing these tools is crucial for enhancing the effectiveness and impact of scientific research through informed decision-making. This study conducts a bibliometric analysis to assess the current state of research on Lysinibacillus sp. in MFCs, identifying key trends, influential publications, and potential areas for future research.¹⁵ This analysis aims to provide a comprehensive overview of the field, guiding researchers and practitioners in advancing more efficient and sustainable MFC technologies.

Materials and Methods

Bibliometric analysis involves quantitatively analyzing scientific literature, with tools like Dimensions AI and VOSviewercommonly used. Below are detailed steps for conducting bibliometric analysis using these tools for this study:

Bibliometric Analysis Using Dimensions AI

Accessed Dimensions AI by visiting the website and logging in with your credentials.Ensured the necessary access level for conducting bibliometric analysis.Collected data by using the search function to gather information on a specific research topic, author, or publication.Utilize filtering to refine the search results based on criteria such as year, research category, or source.Exported the gathered data in formats like CSV, Excel, or BibTeX for further analysis.Analyzed the data by importing it into bibliometric analysis software or tools like Excel.Taken advantage of Dimensions AI’s built-in analytics for citation counts, altimetry scores, collaboration networks, and more.Visualized the data using the built-in tools to create graphs and charts, such as citation networks and research trends over time.For more advanced analysis, integrate Dimensions AI data with other software like VOSviewer, R, or Python, utilizing the API for custom analysis can be done, but in this study, we have gone through VOSviewer.¹⁶

Bibliometric Analysis Using VOSviewer

VOSviewer is a software tool designed for the creation and visualization of bibliometric networks. These networks can encompass journals, researchers, or individual publications.^17-19 Below are the steps to utilize VOSviewer for bibliometric analysis:

Data Preparation

Gathered the bibliometric data from source as Dimensions AI. Ensured that the data is in a compatible format (CSV, RIS, or BibTeX).

Importing Data

Launched VOSviewer and specified the type of data being imported (e.g., bibliographic data, citation data), and followed the instructions to import your dataset.

Network Construction

Selected the type of analysis wished to conduct (e.g., co-authorship, co-citation, or bibliographic coupling). Then, adjusted the settings for network construction, including thresholds for inclusion and the normalization type.

Network Visualization

VOSviewer created a visualization of the bibliometric network. Personalized the visualization by utilizing options for node size, color, and label display. Then, the clustering algorithms to identify groups or communities within the network have been utilized.

Analysis and Interpretation

Examined the network to pinpoint key authors, papers, and research trends. Utilized VOSviewer’s integrated tools to assess network properties like density, centrality, and modularity.

Exporting Results

Exported the visualizations and analysis outcomes for reporting or further examination. VOSviewer enabled exporting in formats such as PNG, SVG, and plain text for network data. By utilizing both Dimensions AI and VOSviewer, acquired a more profound understanding of research trends, collaboration networks, and the influence of scientific literature.

The ‘csv’ and ‘ris’ file link provided by Dimension AI were as:

https://export.digital-science.com/2024-07-12/b468c72b2d07869d1292e96cdce63cb3/Dimensions-Publication-2024-07-12_04-55-23.csv.zip and https://export.digital-science.com/2024-07-12/cbd66ab2c780ceb738a972d6ec5398be/Dimensions-Publication-citations-2024-07-12_04-57-06.ris.

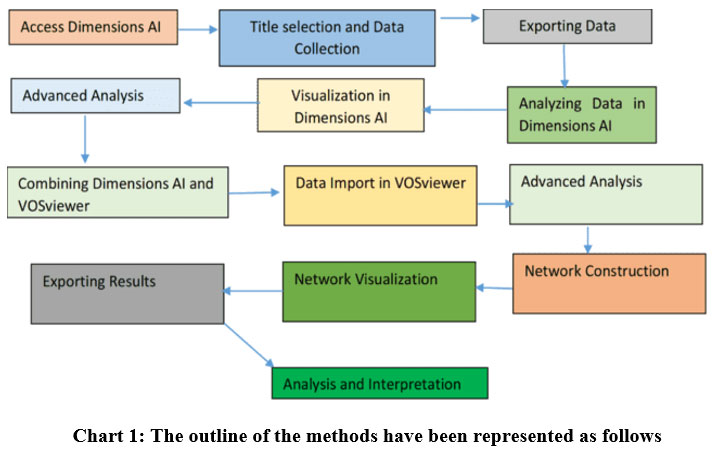

Chart 1: The outline of the methods have been represented as follows Click here to view Chart

Table 1: Top 16 Field of Research, and Co-authorship Analysis

 Table 2: Major Contributing Countries and Journals

 Table 3: Major Contributing Organizations and Co-Citation Analysis

Result

Research on Lysinibacillus sp. as a biocatalyst in microbial fuel cells (MFCs) has seen a remarkable surge in interest and scholarly output since 2015. This trend has been particularly pronounced in the years 2022 and 2023, where the number of publications reached 517 and 462 articles, respectively, as illustrated in Figure 1b. To gain a deeper understanding of this growing body of work, a comprehensive analysis was conducted, encompassing a total of 3029 publications. This dataset included 1500 peer-reviewed articles and 904 book chapters, highlighting the extensive exploration of this topic across various formats. Notably, the fields of biological sciences and microbiology emerged as the most prominent areas of research, with 1210 and 571 publications, respectively, as shown in Figure 1a.

A closer examination of co-authorship patterns revealed that Varjani, Sunita stands out as the leading author in this field, having contributed 17 documents that collectively garnered an impressive 1416 citations. This indicates not only the author’s prolific output but also the significant impact of their work on the research community. Geographically, India has established itself as the leading contributor to this body of research, with a total of 610 documents and an impressive citation count of 19,663. Following India, China has also made substantial contributions, with 427 documents and 15,148 citations, as detailed in Table 2 and illustrated in Figure 3.

In terms of journal contributions, Bioresource Technology has emerged as the leading publication outlet for research on Lysinibacillus sp. in MFCs, having published 52 documents that have collectively received 3535 citations, as depicted in Figure 4 and summarized in Table 2. Additionally, Amity University has been recognized for its collaborative efforts in this research area, producing 38 documents that have accumulated 1435 citations, as shown in Table 3 and Figure 5. The co-occurrence analysis revealed 172 distinct elements grouped into three clusters based on their relationships and frequency, enhancing understanding of term connections. The term “microbial fuel cell” was the most frequent, appearing 151 times, while “Lysinibacillus” was mentioned 88 times, indicating their significance in the research. This analysis provides insights into thematic organization, guiding future research directions and fostering advancements in the field.

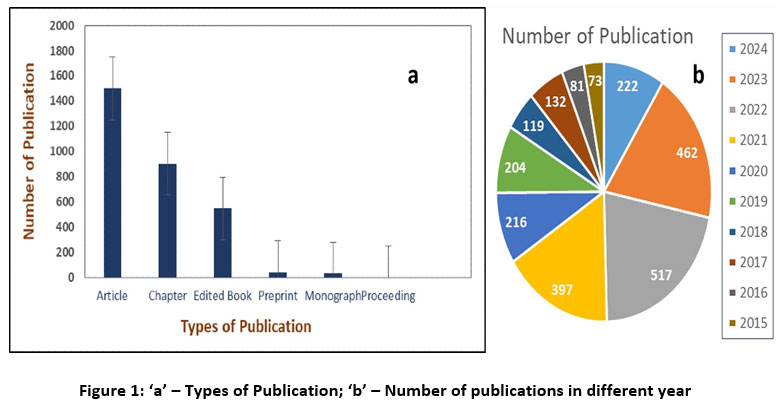

Figure 1: ‘a’ – Types of Publication; ‘b’ – Number of publications in different year  Click here to view Figure

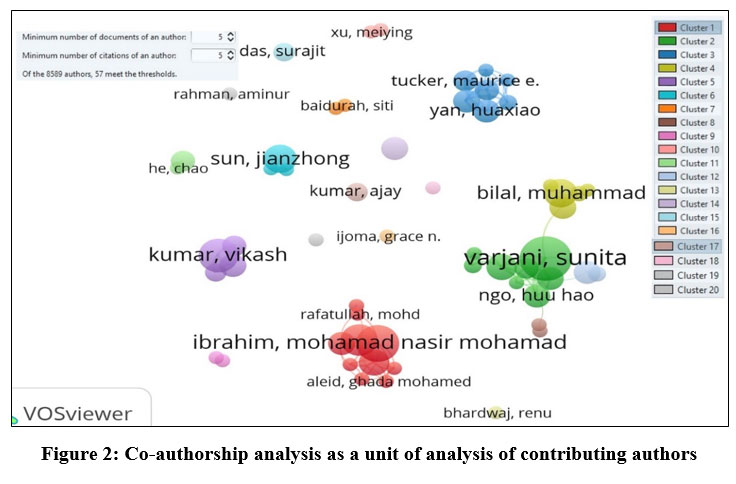

Figure 2: Co-authorship analysis as a unit of analysis of contributing authors Click here to view Figure

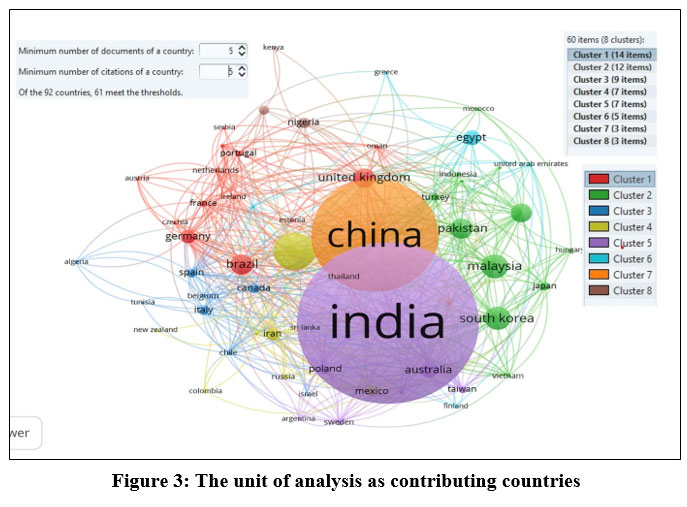

Figure 3: The unit of analysis as contributing countries  Click here to view Figure

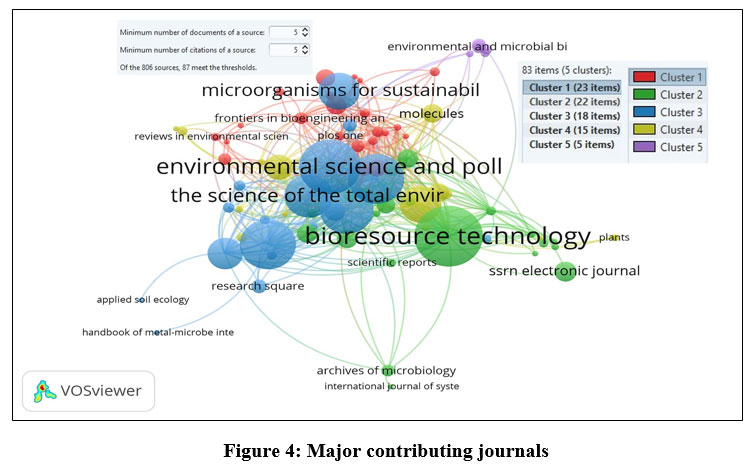

Figure 4: Major contributing journals Click here to view Figure

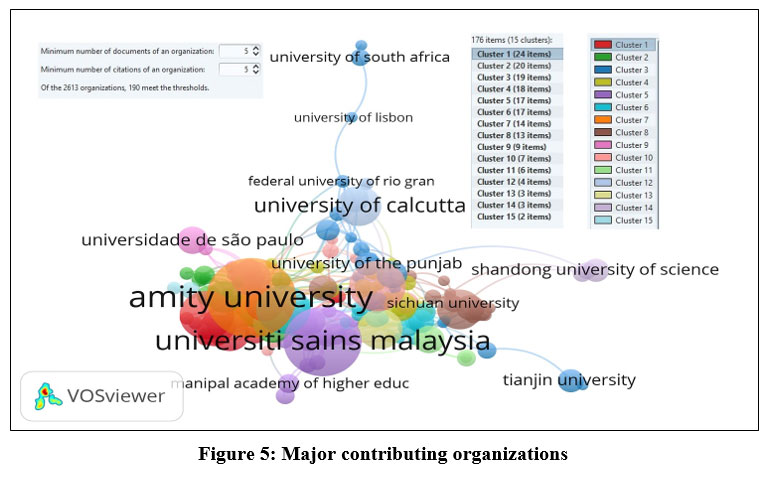

Figure 5: Major contributing organizations Click here to view Figure

Discussion

The research trend on Lysinibacillus sp. as a biocatalyst for microbial fuel cells has seen a remarkable rise, particularly in the years 2022 and 2023. This increase underscores the growing interest in microbial fuel cells and their potential in green energy generation. The significant contributions from the field of biological science, followed closely by microbiology, highlight the interdisciplinary nature of this research. Biological science’s dominance in publications (1210) reflects the importance of microorganisms in developing sustainable energy solutions, while microbiology’s prominent role (571 publications) demonstrates its specific relevance to microbial fuel cell research. The co-authorship analysis indicates that Varjani, Sunita has become a leading figure in this research, with many citations and documents produced.²⁰ This suggests that individual researchers are playing a pivotal role in advancing the field. The dominance of India and China in terms of publication output and citations further emphasizes the strong academic interest in microbial fuel cells in these countries.^{21, 22} India, in particular, stands out with its large number of documents (610) and citations (19663), suggesting that it is a global leader in this area of research. The Bioresource Technology journal’s significant impact, with 52 documents and 3535 citations, highlights its crucial role in disseminating research related to microbial fuel cells and biocatalysts.²³ This journal’s prominent position suggests that it is a leading platform for scholarly work in the field. Amity University’s top ranking in co-authorship with 38 documents and 1435 citations also signals the importance of specific academic institutions in driving forward the research agenda on microbial fuel cells.²⁴ This finding aligns with the global trend where universities and research organizations are central to the development of green technologies. The co-citation analysis reinforces the importance of certain key references in shaping the research discourse. Geyer, R., (2020), Azubuike, CC., (2016), Logan, BE. (2006), and Saratale, RG. (2011) are recognized as key foundational studies in the field, indicating that their findings have had a significant impact on subsequent research on microbial fuel cells.^25-27 Finally, the co-occurrence analysis highlights the centrality of terms like “microbial fuel cell” and “Lysinibacillus,” which appear frequently in the research literature. These terms’ frequent mention (151 and 88 times, respectively) signifies their foundational role in the discourse surrounding microbial fuel cells and green energy production.^{28, 29} The emphasis on these terms suggests that future research may continue to focus on optimizing the use of Lysinibacillus sp. in microbial fuel cells to improve energy generation efficiency and sustainability.

Conclusion

The bibliometric examination underscores the necessity for ongoing research and interdisciplinary collaborations within the realm of MFCs. Subsequent investigations ought to concentrate on rectifying the recognized constraints and delving into the encouraging domains delineated in the forthcoming scope. While this analysis provides valuable insights into the research landscape on Lysinibacillus sp. in MFCs, it is limited by its reliance on publication metadata, which may not fully capture experimental advancements and unpublished innovations. Additionally, the scope of this study does not assess the practical applicability, scalability, or techno-economic feasibility of MFC technologies utilizing Lysinibacillus sp. Future research should address these gaps by conducting experimental validations alongside bibliometric trends to correlate microbial efficiency with real-world performance. Moreover, a more in-depth examination of genetic and metabolic pathways in Lysinibacillus sp. could provide mechanistic insights into its role in electron transfer. Researchers should also explore new microbial strains, optimize reactor designs, and integrate MFCs with hybrid renewable energy systems to enhance their efficiency and sustainability. By leveraging bibliometric tools, scholars can strategically design studies that bridge existing knowledge gaps and accelerate the transition of MFCs from research labs to industrial applications. Addressing these limitations will be crucial in unlocking the full commercial and environmental potential of MFC technologies. Through the utilization of bibliometric instruments, scholars can tactically devise and execute studies that amplify the effectiveness and durability of MFC technologies. The bibliometric analysis presents a detailed overview of the research landscape on Lysinibacillus sp. in MFCs, providing valuable insights for researchers and industry professionals to enhance the efficiency and sustainability of MFC technologies. Future research endeavors should prioritize the exploration of new microbial strains, optimization of reactor designs, and integration of MFCs with other renewable energy systems to overcome current challenges and unlock the full commercial and industrial potential of MFCs.

Acknowledgment

We are thankful to the DBT- BOOST research program, the Government of West Bengal, and the research center of PanskuraBanamali College (Autonomous), Vidyasagar University.

Funding Sources

The author(s) received no financial support for the research, authorship, and/or publication of this article.

Conflict of interest

The authors do not have any conflict of interest.

Data Availability Statement

The used data stored in MEGA (https://mega.io/storage) as a data repository in the following link.

https://mega.nz/folder/GZs2nRyK#OJe55Q-PEdvacEcmCNLPVQ

Ethics Statement

This research did not involve human participants, animal subjects, or any material that requires ethical approval.

Informed Consent Statement

This study did not involve human participants, and therefore, informed consent was not required.

Clinical Trial Registration

This research does not involve any clinical trials.

Permission to reproduce material from other sources –

Not Applicable

Author Contributions

Palash Pan: Conceptualization, Methodology, Data Collection, Writing – Original Draft.

Abhishek Samant): Review & Editing.

Kajari Roy: Visualization, Formatting of Table and Figure.

Nandan Bhattacharyya:

References

1. Gul H, Raza W, Lee J, Azam M, Ashraf M, Kim KH. Progress in microbial fuel cell technology for wastewater treatment and energy harvesting. Chemosphere. 2021;281:130828. doi:https://doi.org/10.1016/j.chemosphere.2021.130828
   CrossRef
2. Umar MF, Rafatullah M, Abbas SZ, Mohamad Ibrahim MN, Ismail N. Advancement in Benthic Microbial Fuel Cells toward Sustainable Bioremediation and Renewable Energy Production. International Journal of Environmental Research and Public Health. 2021;18(7):3811. doi:https://doi.org/10.3390/ijerph18073811
   CrossRef
3. Prathiba S, Kumar PS, Vo DVN. Recent advancements in microbial fuel cells: A review on its electron transfer mechanisms, microbial community, types of substrates and design for bio-electrochemical treatment. Chemosphere. 2022;286:131856. doi:https://doi.org/10.1016/j.chemosphere.2021.131856
   CrossRef
4. Yaakop AS, Hong OK, Salman SM. Utilization of Electrogenic Bacteria Consortium for Sewage Sludge Treatment via Organic Compound Degradation. Green energy and technology. Published online January 1, 2023:123-143. doi:https://doi.org/10.1007/978-981-99-1083-0_7
   CrossRef
5. Pan P, Bhattacharyya N. Bioelectricity Production from Microbial Fuel Cell (MFC) Using Lysinibacillus xylanilyticus Strain nbpp1 as a Biocatalyst. Current Microbiology. 2023;80(8):252. doi:https://doi.org/10.1007/s00284-023-03338-5
   CrossRef
6. Pan P, Bhattacharyya N. Electrogenic properties of Bacillus paramycoidesNBPP1 strain as a biocatalyst in the microbial fuel cell. Biofuels. 2024;15(8):1017-1028. doi:https://doi.org/10.1080/17597269.2024.2320986
   CrossRef
7. Santoro C, Arbizzani C, Erable B, Ieropoulos I. Microbial fuel cells: From fundamentals to applications. A review. Journal of Power Sources. 2017;356:225-244. doi:https://doi.org/10.1016/j.jpowsour.2017.03.109
   CrossRef
8. Vigil TN, Johnson GC, Jacob SG, Spangler LC, Berger BW. Microbial Mineralization with Lysinibacillus sphaericus for Selective Lithium Nanoparticle Extraction. Environmental Science & Technology. Published online September 12, 2024. doi:https://doi.org/10.1021/acs.est.4c06540
   CrossRef
9. Wang L, Lv Y, Huang S, Liu Y, Li X. The Evolution of Research on C&D Waste and Sustainable Development of Resources: A Bibliometric Study. Sustainability. 2023;15(12):9141. doi:https://doi.org/10.3390/su15129141
   CrossRef
10. Hakkaraki VP. Exploring the Evolution of Bibliometric Analysis: A Comprehensive Study of Scientific Publications from 1974 to 2024 Using the Dimensions AI Database. Asian Journal of Information Science and Technology. 2024;14(1):24-31. doi:https://doi.org/10.70112/ajist-2024.14.1.3878
    CrossRef
11. Li J, Huang JS. Dimensions of artificial intelligence anxiety based on the integrated fear acquisition theory. Technology in Society. 2020;63:101410. doi:https://doi.org/10.1016/j.techsoc.2020.101410
    CrossRef
12. Yu Y, Li Y, Zhang Z, et al. A bibliometric analysis using VOSviewer of publications on COVID-19. Annals of Translational Medicine. 2020;8(13):816-816. doi:https://doi.org/10.21037/atm-20-4235
    CrossRef
13. Oyewola DO, Dada EG. Exploring machine learning: a scientometrics approach using bibliometrix and VOSviewer. SN Applied Sciences. 2022;4(5). doi:https://doi.org/10.1007/s42452-022-05027-7
    CrossRef
14. Martins J, Gonçalves R, Branco F. A bibliometric analysis and visualization of e-learning adoption using VOSviewer. Universal Access in the Information Society. Published online December 5, 2022. doi:https://doi.org/10.1007/s10209-022-00953-0
    CrossRef
15. Donthu N, Kumar S, Mukherjee D, Pandey N, Lim WM. How to conduct a bibliometric analysis: An overview and guidelines. Journal of Business Research. 2021;133:285-296. doi:https://doi.org/ 10.1016/j.jbusres.2021.04.070
    CrossRef
16. Passas I. Bibliometric Analysis: The Main Steps. Encyclopedia. 2024;4(2):1014-1025. doi:https://doi.org/10.3390/encyclopedia4020065
    CrossRef
17. Salila BM, Fulgen M, Nambiar K, Archana Kemanabally, Lekshmi Sobhanakumary, Thomas B. Analyzing the academic discourse on RPA in banking: A bibliometric approach. Multidisciplinary Reviews. 2024;8(3):2025064-2025064. doi:https://doi.org/10.31893/multirev.2025064
    CrossRef
18. Bhaskar P, Tiwari CK. Charming or chilling? A comprehensive review of ChatGPT’s in education sector. International Journal of Information and Learning Technology. Published online March 8, 2025. doi:https://doi.org/10.1108/ijilt-05-2024-0097
    CrossRef
19. Kurniadi AL, Gamal A. Revolutionizing Retail: The Exquisite Architectural Marvel of Outdoor Shopping Malls. International Journal of Built Environment and Scientific Research. 2024;8(1):35-35. doi:https://doi.org/10.24853/ijbesr.8.1.35-44
    CrossRef
20. Li WW, Yu HQ, He Z. Towards sustainable wastewater treatment by using microbial fuel cells-centered technologies. Energy Environ Sci. 2013;7(3):911-924. doi:https://doi.org/ 10.1039/ c3ee43106a
    CrossRef
21. Basu S. Proton Exchange Membrane Fuel Cell Technology: India’s Perspective. Proceedings of the Indian National Science Academy. 2015;81(4). doi:https://doi.org/10.16943/ptinsa/2015/v81i4/48301
    CrossRef
22. Arunachalam S, Viswanathan B. A historiographic analysis of fuelcell research in Asia – China racing ahead. Current Science. 2008;95(1):36-49. doi:https://doi.org/10.2307/24103275
23. Zhang Q, Hu J, Lee DJ. Microbial fuel cells as pollutant treatment units: Research updates. Bioresource Technology. 2016;217:121-128. doi:https://doi.org/10.1016/j.biortech.2016.02.006
    CrossRef
24. Maddalwar SR, Nayak KK, Singh L. Performance assessment of commercial bacteria in microbial fuel cells designed using dry cell components. Bioresource Technology Reports. 2023;25:101703. doi:https://doi.org/10.1016/j.biteb.2023.101703
    CrossRef
25. Geyer S. Scalable neutral H2O2 electrosynthesis by platinum diphosphide nanocrystals by regulating oxygen reduction reaction pathways | ZSR Library. Wfuedu. Published online 2020. doi:http://hdl.handle.net/10339/98582
26. Azubuike CC, Chikere CB, Okpokwasili GC. Bioremediation techniques–classification based on site of application: principles, advantages, limitations and prospects. World Journal of Microbiology and Biotechnology. 2016;32(11). doi:https://doi.org/10.1007/s11274-016-2137-x
    CrossRef
27. Logan BE, Hamelers B, Rozendal R, et al. Microbial Fuel Cells: Methodology and Technology†. Environmental Science & Technology. 2006;40(17):5181-5192. doi:https://doi.org/10.1021/es0605016
    CrossRef
28. Saratale RG, Cho SK, Bharagava RN, et al. A critical review on biomass-based sustainable biorefineries using nanobiocatalysts: Opportunities, challenges, and future perspectives. Bioresource Technology. 2022;363:127926. doi:https://doi.org/10.1016/j.biortech.2022.127926
    CrossRef
29. Narayana Prasad P, Kalla S. Plant-microbial fuel cells – A bibliometric analysis. Process Biochemistry. 2021;111:250-260. doi:https://doi.org/10.1016/j.procbio.2021.10.001
    CrossRef
